Schmersal Machine Safety Products
Data Sheet


ES 95 SB The ES95 SB Series are designed for use with hinged movable machine guards which must be closed for operator safety. Their tamper-resistant design and positive-opening NC contacts provide a significantly higher level of safety than conventional, spring-driven limit switches often used to monitor hinged-guard position. Their IP67 rating make them ideal for interlocking safety guards in hostile environments.
-Contacts: 1 NO & 1 NC; 2 NC
Schmersal Machine Safety Products
Data Sheet

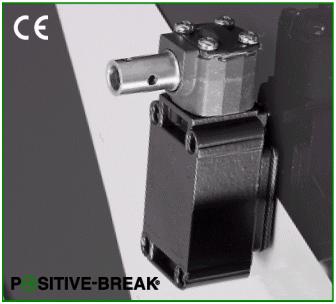

TVS 335 The TVS335 Series are designed for use with hinged movable machine guards which must be closed for operator safety. Their tamper-resistant design and positive-opening NC contacts provide a significantly higher level of safety than conventional, spring-driven limit switches often used to monitor hinged-guard position. Their IP67 rating make them ideal for interlocking safety guards in hostile environments.
-Contacts: 1 NO & 1 NC; 2 NC
Schmersal Machine Safety Products
Data Sheet

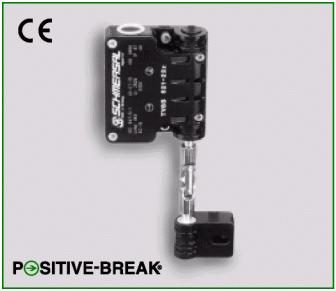

TV8S-521 The TV8S-521 Series are designed for use with hinged movable machine guards which must be closed for operator safety. Their flat design permits opening the door 180°. Their tamper-resistant design and positive-opening NC contacts provide a significantly higher level of safety than conventional, spring-driven limit switches often used to monitor hinged guard position. Their IP67 rating make them ideal for interlocking safety guards in hostile environments.
-Contacts: 2 NO & 2 NC
Schmersal Machine Safety Products
Data Sheet

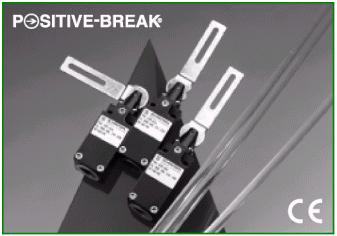

T.C. 235/236 The T.C 235/236 Series are designed for use with hinged movable machine guards which must be closed for operator safety. Their tamper-resistant design and positive-opening NC contacts provide a significantly higher level of safety than conventional, spring-driven limit switches often used to monitor hinged-guard position. Their IP67 rating make them ideal for interlocking safety guards in hostile environments.
-Contacts: 1 NO & 1 NC; 2 NC; 1 NC
Schmersal Machine Safety Products
Data Sheet


TESZ 1102/TESZ 1110

The TESZ Series are designed for use with hinged movable machine guards which must be closed for operator safety. Their tamper-resistant design and positive-opening NC contacts provide a significantly higher level of safety than conventional, spring-driven limit switches often used to monitor hinged-guard position.

Their compact, low-profile design and IP65 rating make them ideal for interlocking hinged safety guards in industrial environments. Designed to mount directly on the hinged guard and its stationary frame, it is easy to install on a wide range of guard styles and sizes.
-Contacts: 1 NO & 2 NC; 3 NC

Warning: Machine safety products sold by Manufacturing Solutions are Safety components only.

The purchaser/installer is solely responsible for the application of these components and ensuring all necessary steps have been taken to assure each application and use meets all performance and applicable safety requirements and/or local, national and/or international safety codes as required by the application. Manufacturing Solutions cannot certify that our products used solely or in conjunction with other Manufacturing Solutions or other vendors products will assure safety for any application.

Any person using or applying any products sold by Manufacturing Solutions is responsible for learning the safety requirements for their individual application and applying them, and therefore assumes all risks, and accepts full and complete responsibility for the selection and suitability of the product for their respective application.

Manufacturing Solutions does not provide design or consulting services, and cannot advise whether any specific application or use of our products would ensure compliance with the safety requirements for any application.
